Reflector antennas are in widespread use in communications and radar applications. The requirement for reflector antennas for use in radars, radio astronomy, microwave communications, satellite communications and tracking, remote sensing, and the like has resulted in the development both of sophisticated reflector antenna configurations and of analytical and experimental design techniques.

Types of reflectors antenna:

  • Plane Reflector
  • Corner Reflector
  • Parabolic Reflector
  • Spherical Reflector

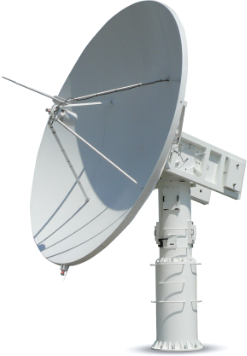

A reflector antenna is a type of directional antenna that uses a curved surface to reflect and focus radio waves. The antenna consists of a parabolic reflector, a feed antenna located at the focal point of the reflector, and a supporting structure to hold the reflector and feed in place. The parabolic reflector is made of a conducting material, such as aluminum or copper, and is usually coated with a reflective material, such as a metal or dielectric coating.

Reflector antennas are commonly used in applications where high gain and directional performance are required, such as in satellite communication, radar systems, and radio telescopes. The antenna's design allows it to produce a narrow beam of radiation in a specific direction, which makes it suitable for long-range communication and detection.

The feed antenna is typically a dipole or a horn antenna and is located at the focal point of the reflector. When the feed antenna emits radio waves, the waves are reflected by the parabolic reflector and focused into a narrow beam. The size of the reflector determines the antenna's gain and beamwidth, with larger reflectors producing higher gain and narrower beamwidth.

One of the main advantages of reflector antennas is their high gain, which allows them to transmit and receive signals over long distances. They also have a narrow beamwidth, which makes them suitable for use in applications that require a highly directional antenna. However, their main disadvantage is their complex design, which makes them more challenging to manufacture and assemble than other types of antennas.

Reflector Antenna
